Knock Sensors
Detonation detection that the ignition system trusts

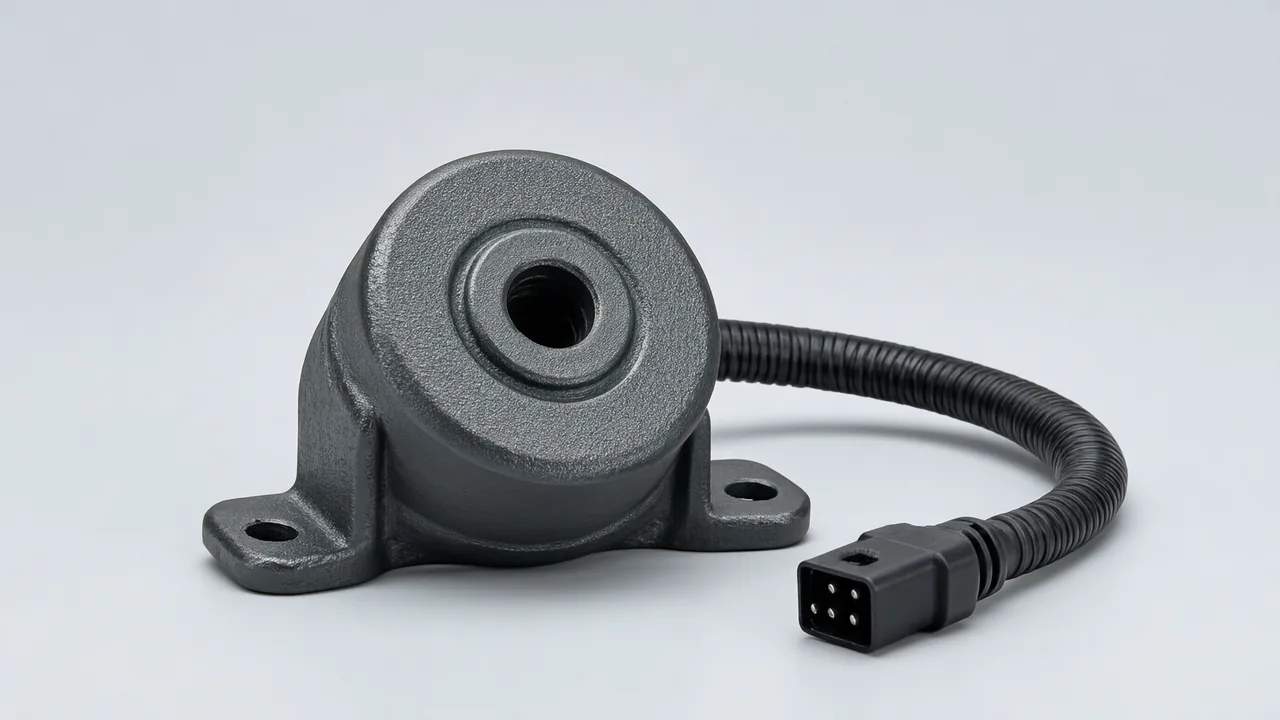

Knock Sensors
Resonant and broadband piezo sensors with OE-matched frequency and sensitivity — because ignition timing follows this signal.
A knock sensor listens for the characteristic resonance of detonation and tells the ECU to retard ignition. Sensitivity that is even slightly off either retards timing permanently — costing power and fuel — or ignores real knock, costing the engine.
We supply resonant and broadband piezo sensors matched to the OE frequency, sensitivity and mounting torque, with the torque spec marked on the body as the OE part carries it.
Every batch is verified on a shaker table against a reference sensor, and the verification record ships with the parts.
Representative series and where they fit
Representative series, not an exhaustive price list. Series codes are our internal naming; the connector and range cells are what a buyer actually checks first. For any OE number you fit we will return the exact SHR equivalent with its own datasheet.
| Series | Sensing element | Range | Connector | Typical fitment |
|---|---|---|---|---|
| KS-1xx | Piezo, resonant | 6 – 8 kHz centred | 1-pin, spade | Legacy EU petrol engines |
| KS-2xx | Piezo, broadband | 5 – 20 kHz flat | 2-pin, oval flange | Modern EU/NA engines |
| KS-3xx | Piezo, broadband | 5 – 20 kHz flat | 2-pin, threaded M12 | Truck and LCV petrol |
OE numbers in demand
Numbers harvested from current after-market demand in our categories, with the application the demand carried. This is a statement of what we cross-reference routinely — not a fitment guarantee. Send your OE number and we will confirm coverage and return the datasheet before any order is placed.
| OE number | System / family | Application | Verified |
|---|---|---|---|
| 18640-73G00 | Mitsubishi Electric | Suzuki Jimny / Swift / Vitara; Mitsubishi Lancer / Pajero | |
| 39320-35561 | Hyundai/Kia | Knock | — |
| 22060-7B000 | Nissan | Knock — Frontier/Xterra | — |
| 0 261 231 007 | Bosch | Knock — VW/Audi group | — |
| 12589867 | GM | Knock — LS engines | — |
| 0 261 231 033 | Bosch | VW / Audi group | — |
| 0 261 231 070 | Bosch | VW / Audi group | — |
| 39320-3C000 | Hyundai/Kia | Knock | — |
| 39250-2G100 | Hyundai/Kia | Knock | — |
| 18640-78K00 | Suzuki | Grand Vitara | — |
| 12570125 | GM | Knock — LS engines | — |
| 10456603 | GM | Knock | — |
Why distributors buy from SHR
Resonant and broadband families
Matched to the OE frequency — a resonant sensor from the wrong family either retards timing permanently or ignores real knock.
Sensitivity matched to the OE part
25–60 mV/g families; sensitivity that is slightly off changes ignition timing on every combustion event.
Mounting torque marked on the body
As the OE part carries it — an over-torqued piezo sensor loses sensitivity and nothing warns the driver.
Shaker-table verified
Every batch is verified against a reference sensor and the record ships with the parts.
Single and dual-wire connectors
Per the OE harness without adapters.
Fitment coverage
- Petrol engines of all displacements
- Turbocharged applications
- EU and NA passenger cars
- Light commercial vehicles
- Fleet maintenance
- Engine remanufacturing
Send your OE numbers today
Resonant and broadband piezo sensors with OE-matched frequency and sensitivity — because ignition timing follows this signal.
