Brake Pad Wear Sensors
The warning loop a disc brake cannot do without
Brake Pad Wear Sensors
Lead lengths, clips and connector patterns matched to the OE pad — because a wear loop that does not reach is a warning that never arrives.

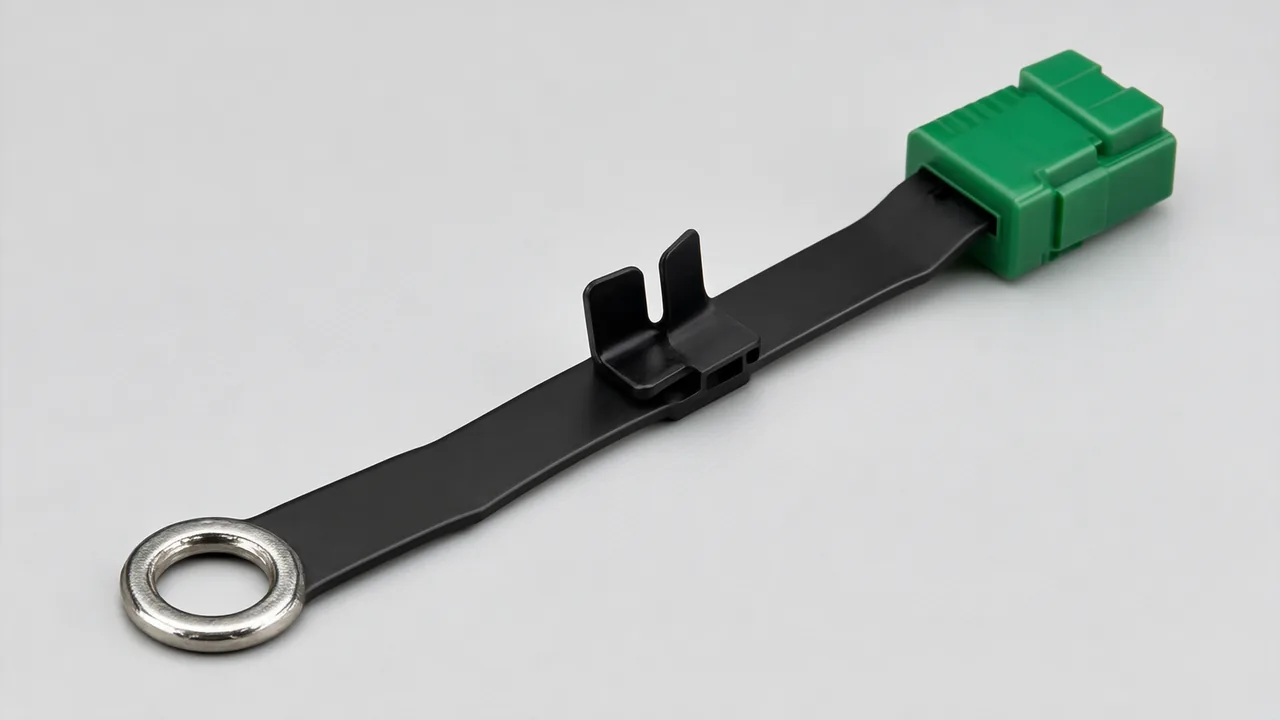

A brake pad wear sensor is a loop of resistance wire embedded in the pad that opens when the friction material reaches its minimum. The ECU watches for the open circuit and lights the dashboard warning.
The hard part is not the wire — it is the lead length, the clip geometry and the connector, which differ by pad and caliper family. A sensor with the right loop but the wrong lead cannot be fitted.
We supply per OE part number: lead length, clip, connector and heat-rated insulation matched to the application, for passenger cars and heavy trucks.
Representative series and where they fit
Representative series, not an exhaustive price list. Series codes are our internal naming; the connector and range cells are what a buyer actually checks first. For any OE number you fit we will return the exact SHR equivalent with its own datasheet.
| Series | Sensing element | Range | Connector | Typical fitment |
|---|---|---|---|---|
| BPW-1xx | Resistive loop | Pad minimum trigger | 2-pin, OE clip | EU passenger cars |
| BPW-2xx | Resistive loop | Pad minimum trigger | 2-pin, 250 °C PTFE lead | Performance and SUV pads |
| BPW-3xx | Resistive loop | Pad minimum trigger | 3-pin, 700 mm lead | Heavy trucks and trailers |
OE numbers in demand
Numbers harvested from current after-market demand in our categories, with the application the demand carried. This is a statement of what we cross-reference routinely — not a fitment guarantee. Send your OE number and we will confirm coverage and return the datasheet before any order is placed.
| OE number | System / family | Application | Verified |
|---|---|---|---|
| 21296863 | Volvo/Mack | Brake pad wear — truck | — |
| 21390375 | Volvo/Mack | Brake pad wear | — |
| 20928544 | Volvo/Mack | Brake pad wear | — |
| 7421296863 | Renault | Brake pad wear | — |
| 20526768 | Volvo/Mack | VOLVO | — |
| 21296874 | Volvo/Mack | VOLVO | — |
Why distributors buy from SHR
Lead length and clip per OE part number
The loop is the easy part — a sensor with the right loop but the wrong lead cannot be fitted at all.
Heat-rated insulation at the pad
PTFE/PHT insulation rated to 250 °C at the contact point, where brake heat destroys generic wire within a season.
Sealed termination
Terminations sealed against brake wash-down, which corrodes an open crimp long before the pads are worn.
Passenger car and heavy-truck families
Truck loops are longer and clip differently; both are stocked rather than adapted.
Loop resistance verified on every unit
A wear loop that is open in the box lights the warning with new pads — the one failure mode a customer never forgives.
Fitment coverage
- EU and NA passenger cars
- Heavy trucks and trailers
- Fleet brake programmes
- Friction-material suppliers
- Brake remanufacturing
- Dealer and independent service
Send your OE numbers today
Lead lengths, clips and connector patterns matched to the OE pad — because a wear loop that does not reach is a warning that never arrives.
